Stair is sets of steps which allow us to move basically from one floor to another floor. It is a essential part of building mostly constructed inside home. In this blog I will give a clear over view about stair.

First of all we need to know the technical term of stair part.

PARTS

1. Trade :- Trade is the horizontal portion of a step where we can stand.


stairs

2. Riser :- Riser is the vertical distance between two steps.


3. Flight :- Inclined Plane with no of steps allow some vertical distance.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

4. Landing :- A platform for rest or change direction, stated end and starting point of a flight.


5. Waist :- The thickness of flight without steps is called waist.

civil engineering

6. Handrail :- The holding rail allover the stair is called handrail.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

7. Run :- The length of stair in horizontal plane is called run.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

8. Pitch :- The slope of stair is called pitch




CLASSIFICATION OF STAIR


Stair are classified as per their design in various type. A brief discussion is given.

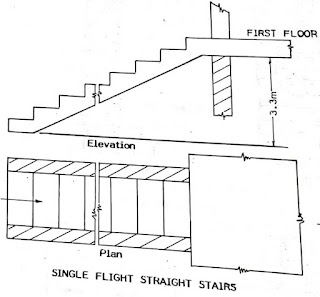

1. Straight Flight Stair :- This stair runs in one direction. All steps include in a single flight.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer


2. Dog-Legged Stair :- In this stair there are two flights runs in opposite direction with an intermediate landing. Length of flights are same but no open space between the flight.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

3.Quarter Turn Stair :- This stair two flights runs at 90 degree with an intermediate landing. Length of flights are not equal or may varies.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer


4.Half Turn Open Well Stair :- This is similar to dog legged, but main difference is some space is considered between two flight and thus create a well type structure.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

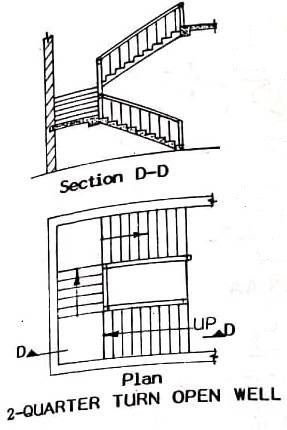

5. 2-Quarter Turn Stair :- In this type there are 3 flights each runs at 90 degree with 2 intermediate landing.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer

6. Circular or Spiral Stair :- This stair consist one flight and shaped like Spiral in elevation view and circular in plan view.


stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer


7. Bifurcated Stair :- This stair also consist three flights in a order that two flights run opposite or at 180 degree with a intermediate landing and another flight runs at 90 degree angle with same intermediate landing.

stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer


CONSIDERED VALUE


According to building bylaws some values are considered for stair construction. These are-

1.Trade :-                                          150 mm to 200 mm or 6 in to 8 in
2.Riser :-                                           250 mm to 300 mm or 10 in to 1 ft.
3.Landing :-                                      900 mm to 1200 mm or 3 ft to 4 ft.
4.Flight Slab Thickness :-               125 mm to 150 mm or 5 in to 6 in.
5.Minimum width of Flight :-         900 mm to 1500 mm or 3 ft to 5 ft
6.Minimum Head Room Height :- 1500 mm to 2100 mm or 5 ft to 7 ft

RELATION BETWEEN RISER AND TRADE


On an average a relation between Riser and Trade is - Riser = 66/ Trade ( in FPS)

STEPS CALCULATION


Let suppose height between the floor is 3.45 m

Number of steps :- Let Riser height = 150 mm. Total Riser height is (3.45 - 150 mm -150 mm ) = 3.15 m. (150 mm is for floor slab and landing slab).
Now the no of steps = 3.15 m / 150 mm = 3.15/0.15 = 21 nos

For equal no of Steps in each flight provided no of steps is 20 .
Therefore the actual Riser = 3.15/20 = 0.1575 m or 157.5 mm.

 Dimension of Service Lift :-
lift,stairs,stair,staircase,stair treads,diy stairs,stair shuffle,stair railing,20 stair,stair half,stair lift,stair rail,down stair,stair case,stair tread,stair dance,stair slide,death stair,spiral stair,stair design,wood stairs,make stairs,stair remodel,types of stair,stair landing,stair masters,stair workout,crazy stairs,build stairs,stair way slope,stair makeover,circular stair,stair spindles,stair banister,stair stringer



Conclusion :-   Here I discuses about stair case quite widely. Please support me to shear this blog if my knowledge helps you a little bit.Thanks.
